Start (1)            I started thinking about a trimaran in about 2011 for a couple of reasons. My partner came sailing on my trailer sailor (TS) and was not comfortable at all. The reason I owned a TS was 2 fold, race and cruise with my partner. So without her being part of it, it just became a race boat.

It was no slouch but also not a sports boat. I found myself in about the middle of the fleet and as it happened the only one in the middle of the fleet. There were faster boats dueling it out ahead as well as slower boats behind me dueling it out and I was stuck in the middle without any competition.

So with a tri I could solve the problem, my partner would come out because the boat sails flat and I could compete with the boats up in front. We never plan to sleep over night so do not need too much cabin space.

I originally looked at the Scarab 6.5, I was going to use an 18ft catamaran for the amas and build the main hull. This would quicken the build process because I only had 11 weeks annual leave owing and wanted to build it in that time. I bought an old Stingray cat and started planning only to find I was made redundant at work and out of a job.

I found another job after about 6 weeks but while out of work I did not want to commit to a project that costs money I may not have. So I sold the cat and all the bits and pieces I started to accumulate. It was on the back burner for a while.

In 2012 I put my TS on the market to sell. I sold it in early 2013. The tri project was back on again. I came across an A class cat and put a notice on boat design.net asking if it was suitable for amas. I got a mixed reaction and by the time I went back to look at the A class again it was gone. Any wonder it was only $200, less than the value of the good trailer that was with it.

I started to communicate with Michel Fedisch about a design he was working on, the Husky. It fitted the bill, fast and good looking. I did not need accommodation and was set on a day boat to race. I started to go back over all the information I had accumulated earlier on when I first started to think about a tri.  And started to look for a suitable cat to use as ama's. I then came across a Hobie 20 for sale.

The Hobie 20 is a big boat, plenty of volume, solid construction, plenty of sail area. I purchased the boat and I was starting.
(2)

I sent Michel a heap of measurements of the H20 so he could do the design for the main hull, H20 shown above. I am now in the process of chasing up suitable timber for the stringers etc. The main hull will be constructed of 6mm ply/epoxy composite. I am a registered builder and familiar with timber so that suits me better as a building material. Although this is the first boat I have ever built a boat.

(3) 6^th June 2013

I had the first 8 sheets of ply delivered today. And went to the local hardware to get some timber for the building frame.

(4) 22^nd June 2013

It has been a while since I have done anything and I am chomping at the bit to get into it. Michel has had some family issues and I started a new job which slowed us up a bit. But today I started marking out the frames/bulkheads. I have the false transom done and the building frames in place.

                                         Hobie 20 to be used for amas

                                         Building frame

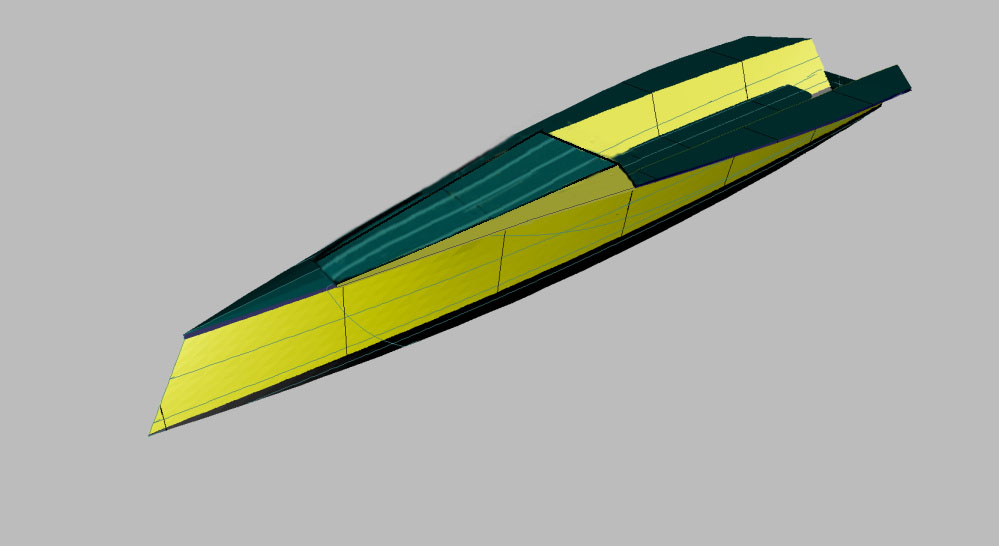

While I was waiting for the frame offset details to be drawn I played around on photoshop. I added a small cabin to the freeship image I received from Michel. I am going to build the boat with this small cabin just to add a bit of character to the shape. It will not help getting access to the cabin so is purely there for looks only.



(5) 30th June 2013

I spend a fair bit of time during the week as well as all weekend building. I have the frames/bulkheads constructed and the frames are fixed to the building frame. I have also managed to install a couple of stringers. I will concentrate finishing the stringer installation after work this week and hopefully be ready to plank up the hull on the weekend.

I made a few mistakes which can be seen in one of the pic’s below, I made a frame 120mm to wide. (I read a 7 instead of a 1 so ended up making the frame an extra 60mm wider either side at the sheer line.

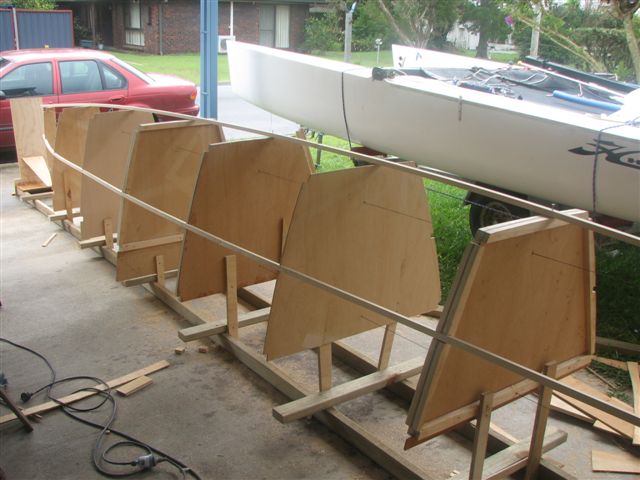

                                          Bulkheads on building frame

                                         The second frame is wrong, notice the kick.

(6) 16^th July 2013

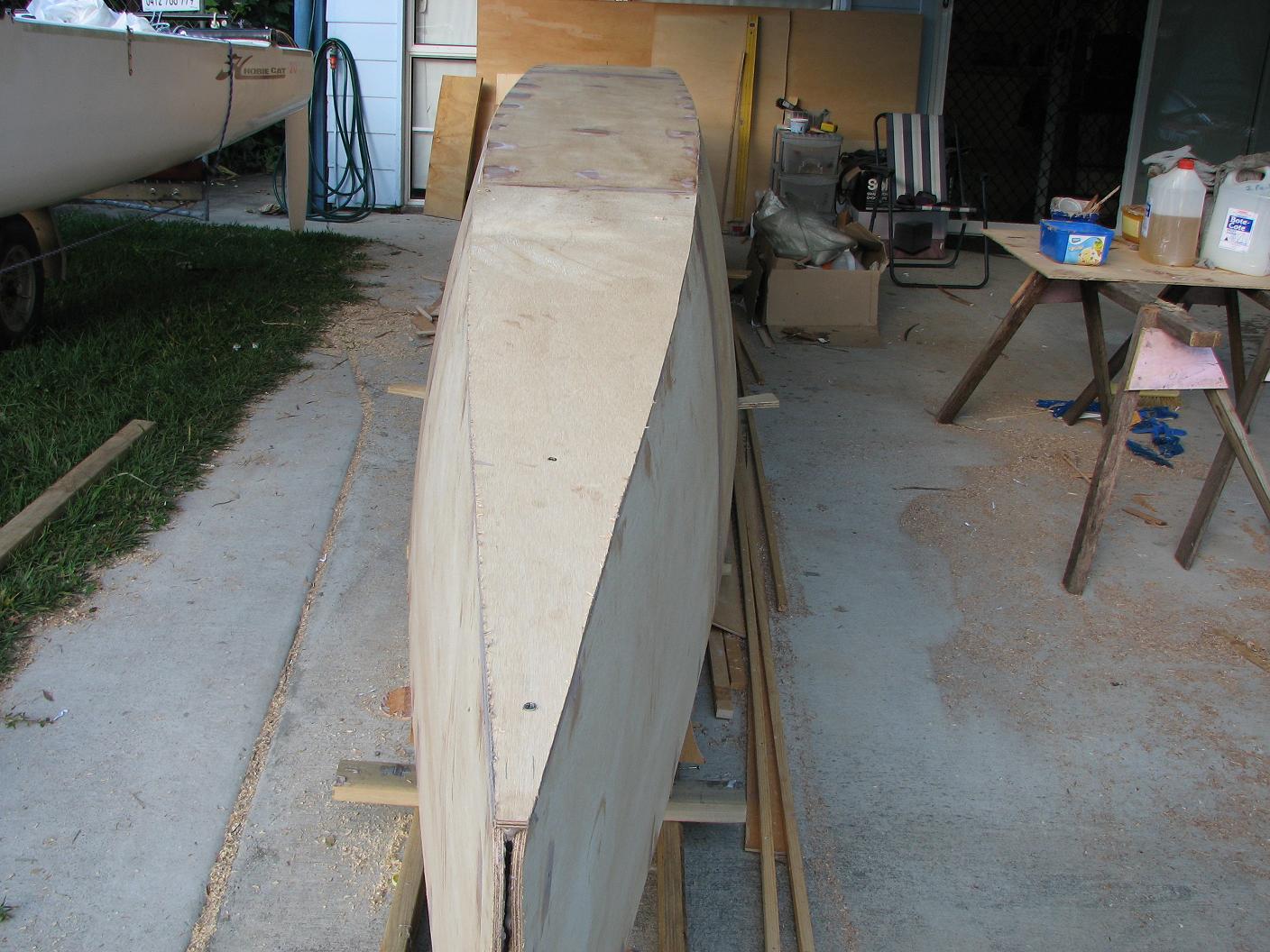

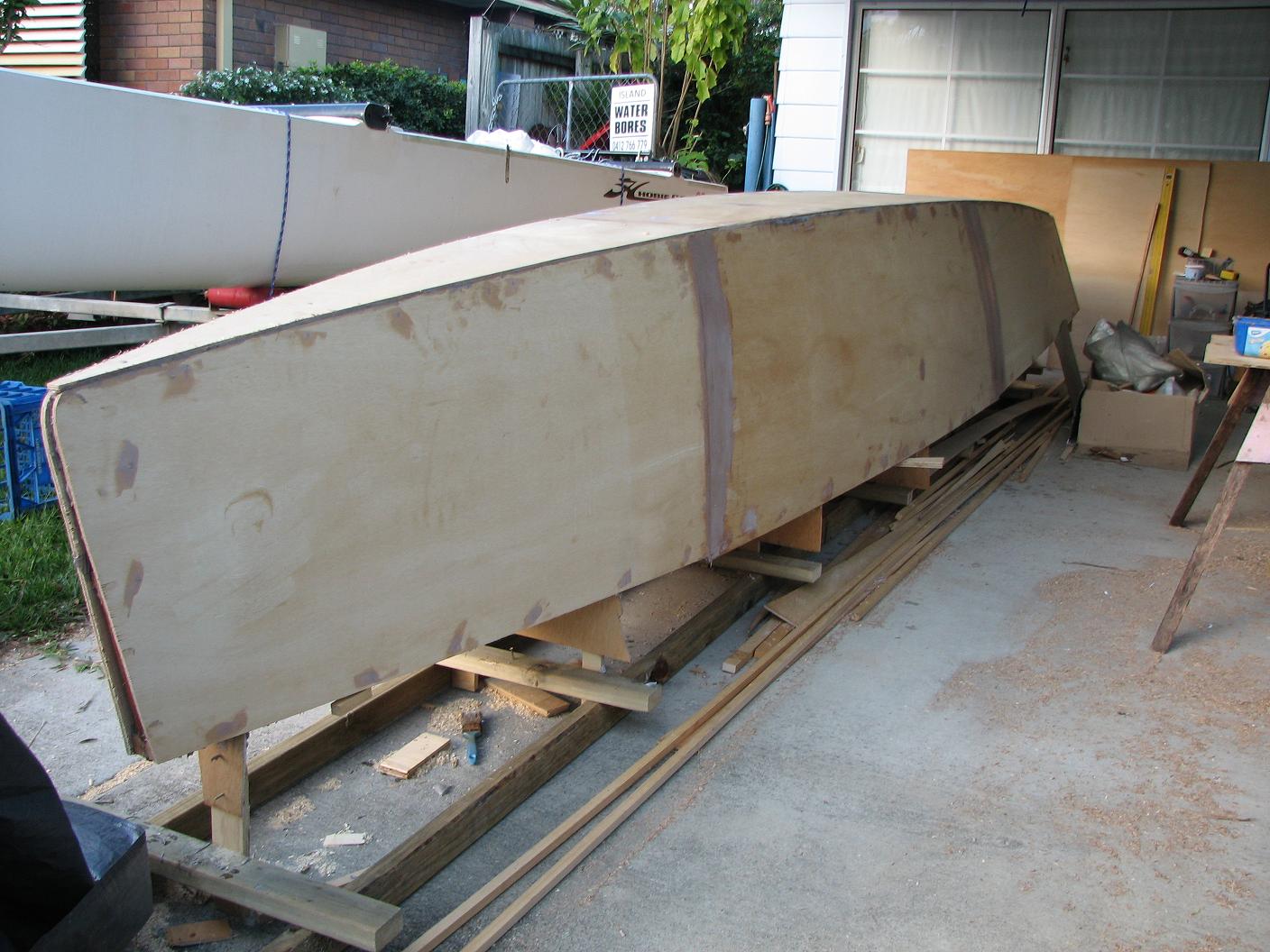

More good progress, I now have the boat planked (sheeted), see the photo’s below. The process was reasonably straight foreword. I temporarily screwed the sheets of 6mm plywood to the frames, scribed them and then cut them to shape with a jig saw. I marked the glue points (stringers etc) while the ply was tacked to the frames.

After spackling on the epoxy glue I screwed the ply back into place using the same screw holes which ensured the ply went back into the same location. To hold the ply tight against the frames while the glue was setting, I used a piece of 31 x 18 molding screwed to the ply, top and bottom. The screws were fixed about 200mm to 300mm apart. It depended how the ply fitted against the frame as to how many screws I used. The screw holes were patched later.

The lines came out well; I did not have to adjust any of the frames except the one I stuffed up.

                                         The reverse bow shown here.

To explain the decision to have a reverse bow. The Hobie 20 has a conventional bow and a lot of thought went into whether I should follow the lines of the Hobie or go with what seems to be the modern look (looks fast but wont make any difference I guess) and reverse the bow on the main hull. And that is exactly the reason I went for the reverse bow, to make the boat look as modern as possible. In the end it may be the wrong decision having one reverse bow and two conventional shaped bows but I am stuck with it now and I think it will look good. A person preference.

The main hull has ended up 6.2m long. That is ideal for me along with the size of the Hobie hulls it should show a good turn of speed, be light and manageable.

I am building the boat in my carport. Not the best location but the only one I have without renting space somewhere. That would not work for two reasons, cost and I would not be able to work of an evening which would slow the time to get it in the water.

This weekend I hope to get the hull sealed with epoxy, fared and the chine line taped with 200g/m2 cloth.

7) 1^st August 2013.

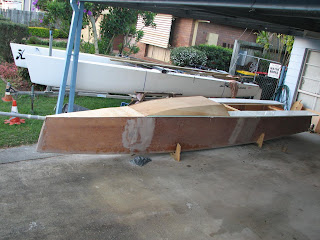

Progressing ok, I managed to get the outside of the hull coated and sanded and turned over. I was surprised how light it was when we turned it. I could lift it myself but it is to awkward but with the help of a 13 yo it was a piece of cake, that gives an idea of the weight of just the hull.



8) 8^th August 2013

I bought some foam sandwich off cut panels for the wing seats. I could have done them in ply but I think these will give a much stronger and better finish. They were only $60 so probably worked out about the same cost as ply.

I managed to get the wing seats and deck temporarily fitted. They have to be scribed in, glued and glassed up to be complete. The seats are about 320mm wide at their widest point, they flair from nothing at the front where they taper into the hull and are full width at the transom. The cabin sits outside the main hull on top of the wing seats and follows that line and not the hull sheer line.

Above images indicate how the finished product should look, main hull anyway. I have been itching to get to this point incase I was not happy with what I was building. I am please how it looks, I have not seen anything like it, sleek, sporty and should go pretty fast.



5^th September

It’s been a while since I have updated but I have slowed up a little. Doing all the fiddly bits. I have the deck glued in, faired and ready to under coat, the wing seats are finished and ready to under coat as well. I am very pleased with how it looks and the use of the foam sandwich seats. They have stiffened the boat up sub-satanically and they look clean and smart. If ply was used the strength would not be there and I am sure they would look bulkier.

I turned the hull last weekend and painted it, see new pictures. I did this because of timing, I have to use my time very wisely, all my gluing is done at the end of the day so it cures overnight and if I wanted to keep working on the top side I would have been gluing at 10am and then have nothing to do until it sets, usually over night (It is winter here). So to make the best use of my time I turned the hull and painted it.

A mistake I made, well not really a mistake but just a problem I encountered was I final sanded the hull and put the undercoat on Saturday, the top coat can’t go on for several hours but must be done before 3 days (written instructions) so it had to be done Sunday because I work for the rest of the week. I checked the weather conditions and noticed a south easterly was going to come up in the afternoon so I needed to get the paint on and drying by then (I am building in an open carport). Sunday morning I start sanding the undercoat but it was not dry enough, it fills the sand paper and blobs up. I can’t sand it as well as I wanted to. The problem is I have to paint asap so I did the best I could and put on the top coat, I used International TopLac, one part paint, It came up ok but could have been better if I had of been able to sand it and do a bit more prep and then paint Monday. But all in all I am happy with it. After all I want a racing boat not a show boat. I would rather put effort into making it go better.

I am getting brackets made up to fold the amas under the wing seats similar to the F boats. It is a lot more expensive than a sliding or dismantling system but I can rig the boat myself when I go for a cruise with family. The cost to manufacture the brackets is $900 but worth it. I expect that will come back when I sell the boat. I purchased 100mm x 3mmm tubing for the cross beams.

The total cost is more than I thought it would be (like everything these days) but still good value compared to buying a boat which is not completely suitable. Included in that is about $600 for tools and $300 for another spinnaker. If I deducted them and the folding system I would be under what I estimated at the beginning.

Boat Name: I like the name “MAMA COCHA”. MAMA PACHA means mother earth or god of the earth in Inca mythology. And Mama cocha is the God of the sea, the god that protects everyone that ventures onto the sea and all creatures in it. Something different I am thinking about. My son said MAMA in Latin now means Boob so that would be “boob god”, HAHA.

The image above is the bridge deck which I may modify. Lowering it to about floor level just above the opening seen above. If installed there it will still allow storage under but will also allow me better access into the area under the deck. The bridge deck will be where I stow and launch the asymmetric spinnaker until I get a sock on the tramp, like most racing cats. You can see the opening but it is tucked in about 250mm under the bridge deck. I used the Hobie cat cross beam for the mast step and stiffened it up with a box beam inside it.

The bathroom, oops I mean boat, no I mean bathroom, the wife won and we started a bathroom renovation which is now taking up precious boat building time even though I have a carpenter doing it. I had to help him re-sheet the walls Friday and then I fitted a linen cupboard Sunday so not a lot done over the weekend.

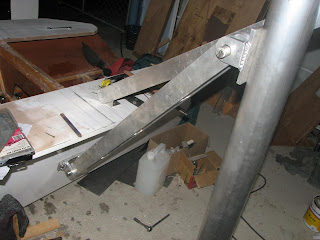

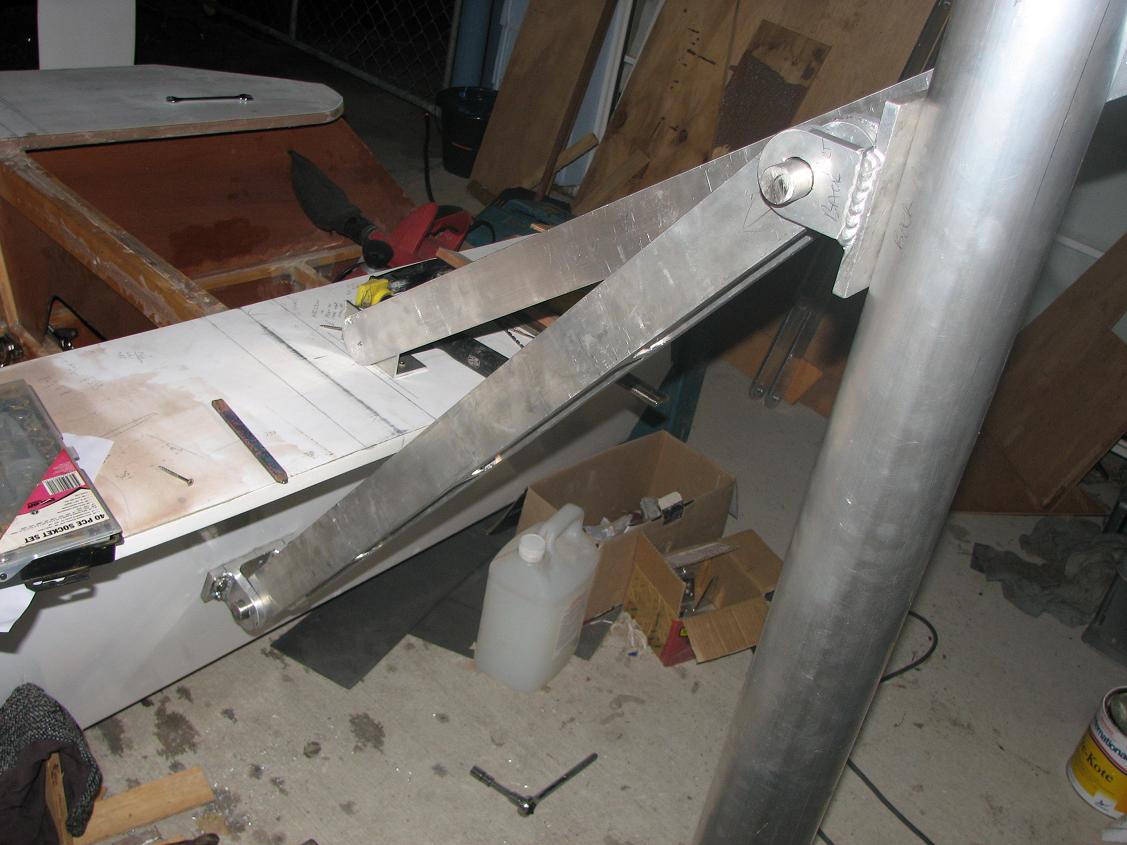

I managed to bolt on the port side folding system. It seems to work ok but until I bolt on the amas I am not 100% convinced it will be fine. But that is how I am going to do it, bolt it all together and modify it if it needs it. I can get the floor glued in after work each night now and work on the starboard side folding system on the weekend when I have a full day to get my teeth into it. And in day light.

A Friend bought an F22 and I saw it on the weekend for the first time, they are beautiful and I wish I could afford one. Goes like the clappers as well. I noticed his folding system is not as strong as mine. Maybe I have gone over board but better than under. I cant wait to race against him.

I wish I had time to watch some America’s cup on youtube, I might try and download a race to watch later?

21^st October:

Progress is slow and it is frustrating me no end. Family business all weekend, I have everything painted with just a few touch ups to go. The folding system is complete and I just have to tighten up some bolts. I will finish fitting inspection ports, rigging and set up the trailer this weekend (I hope)as well stand the mast and have everything work on the ground. The following weekend looks like it will be the test sail (fingers crossed)

1^st November:

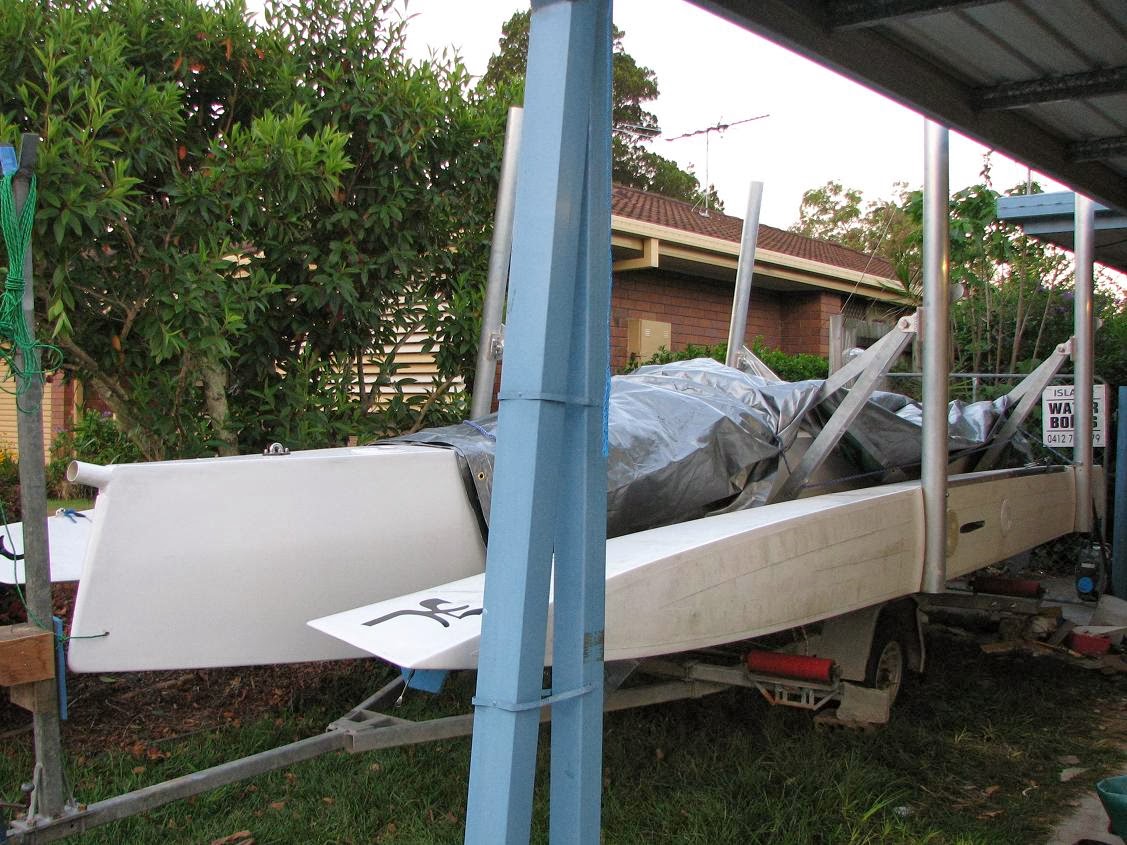

I finally have the boat on the trailer and the carport cleaned up. I had visitors coming for 2 weeks so had to do it. It was easy to get loaded. Now I just have some bits and pieces to do as well as rig the mast on the boat. That will be a couple of days work then in the water for a test sail.

8^th December 2013

Thank god it is finished. Working full time, 8 children (4 mine + 4 partners), 2 grandchildren, a bathroom reno, teaching a daughter to drive and building a boat in 6 months was a bit too much to take on.

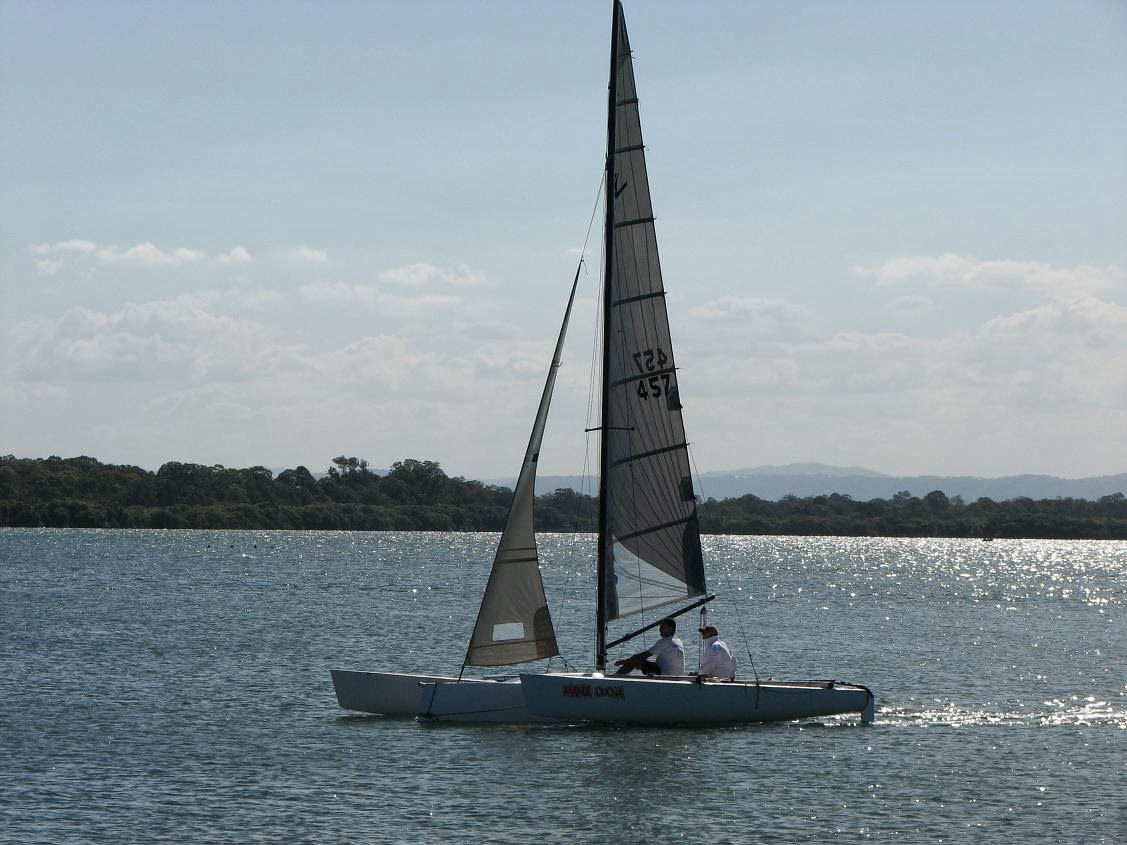

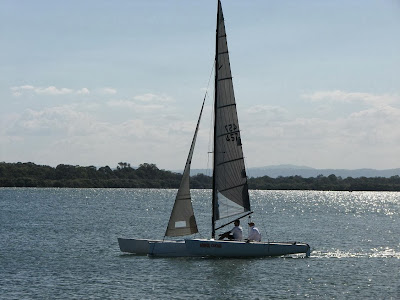

A friend and I went out in conditions that ranged from 5knts to 14knts in the gusts. A couple of small problems like the inner stays, which are only there to hold the mast up until un-folded, hit the spreaders and stopped the mast from rotating properly. Easily fixed. On and off the trailer was smooth.

I only had the GPS  for 1 run to windward and 1 on a reach. We managed 7.2knts to windward and 12.4knts on a 2 sail reach, in the gusts. Not sure what the gust strength on that test was but it was up to 14knts max. during the time we were out sailing.

I did not try the spinnaker. The wind was sort of across the passage and changing around 20deg and gusting, not the best conditions for a spinnaker test. The boat accelerated smoothly and noticeably but it was not noticeable when the boat started to plan like it is with a mono or motor boat. With the flat bottom it should plan but it just went faster.

The boat was not under pressure during the gusts, there was plenty more capacity in the amas, they seemed to get down to their rocker line and that was about it. The main hull sailed flat once up to about 7 to 8 knts. The stern gets up on the water.  We mostly sat in the cockpit and not out on the tramps.

I looked at the GPS when we were going about 7knts and I told the friend on board, we both thought we were going about 4knts. Not sure why we were going faster than we thought even when going above 10knts it was the same.

There was a bit of spray coming from the folding struts, not a lot but probably enough to be annoying during winter. I will make up some caps like the front of an airplane wing to go over them and see if that reduces it. I think it should because at present it is a 60mm wide aluminum flat strut slapping the water.

All in all very exciting and happy. I have a friend with a F22 who is staying on the island over Christmas so I intend sailing against him a few times to see how we compare. I don’t expect to be as fast as his boat but it will be nice to do a comparison. I will do another update after Xmas.

2/2/2014

Second sail today in the passage again. The yacht club raced in the mouth of the passage and in a section of the bay. I thought it prudent to do another trial because the prediction was 15 to 20knts. A strong out going tide would have created a good sized chop out there. The two local weather stations said we had an average of 15knts of breeze in the gusts.

It seemed to take us ages to set up so we only had about 1.5 hours sailing. We ran down the passage pretty square with only one jibe and only managed about 7knts of boat speed in the gusts. It gave us a good beat though.

In the gusts going to windward we managed 9knts and we managed that a few times. The boat felt great at all speeds to windward and at 9knts it did not seemed pushed but I don’t think it would have gone much faster had we tried in that breeze. Happy to do those speeds hard on the wind with a good angle of about 45deg.

We had some splash from the front struts so I am going to shape some PVC pipe in a foil shape and wrap them on the strut. I tried it on the back struts and it helped. The splash is no big deal but the PVC on the front struts might work like it has on the back (Might not too?). I heated 90 dia PVC pipe in my BBQ lid down, slid it up the back strut while still floppy and shaped it into a foil shape with my hands. Simple.


1st March 2015
I have not sailed much in the last year because of crew problems, one started working away and another injured his back and I did not want to train another one. The weather has also been a problem.

My No. 1 crew is back for good and we just went out for a race to Mission Point and back (lunch in between races) We used the kite for the first time on the way up, it was light but filled beautifully. The breeze headed so it came down after about 15 minutes. The breeze remained under 10knts on a close reach and on the wind at times. Nothing special to say about going up to Mission except we started 10 minutes after the rest of the boats and picked up about 5 minutes on them.

The sail home was different, breeze gusting to 15knts and on a beam reach and varying around this angle of sailing. We hit 13knts a few times and 14 once. That was with tide assist. It was a great sail. We managed to beat the next boat by 8 minutes over a 57 minute race. It was a Ross 780, no slouch.

A new lease of life after last sail and expect to get out a lot more this year provided the weather suites.

I put packers under the front beam/ama attachment because I thought the amas sailed bow up. This seems to have made a difference in speed and the way it looks on the water (balanced)

22nd July 2015
It has been a while since I posted anything because I have not sailed as much as I would have liked. We managed to go out last weekend in the passage. Wind strength was just max 7knts. Light for this boat and the lightest I have sailed the boat in. It seemed to lack power so I will try a bigger jib. I have one that will fit and it is 2m2 larger than the standard H20 jib which will take the sail area up to about 25m2. We used the asso for most of the run up the passage, it filled nicely and jibed fine. I have posted some footage taken from the F22 in the club. I tried to delete the audio but did know how to do it.

Lessons to date:

Measure twice and cut once. This saved me more than once.

Read everything twice especially if you have never built a boat before, like me.

Europeans cross their 7 and sometimes their 1 looks like a seven, so re-do any numbers so you are comfortable with reading them. I read a 1 as a 7 and ended up stuffing up a frame.

After you put the building frame down, mark it or better still fix it down to the slab or ground, you “will” knock it out of alignment.

If you make a mistake and end up with 2 lines marked on a piece of ply, cross the wrong one out because the next day you won’t remember which is the correct line.

Soaking out the epoxy externally. I read the best way to do this was to use a foam roller and do it wet on wet. Well it left a lot of sanding, at least 8 hours with a good orbital sander so I tested a bit by using the foam roller but using a painters technique of brushing it out while still wet. That made a huge difference.

In hindsight I would look into using foam sandwich panels instead of ply. It might save a lot of work doing the framing. Maybe use a system the same as Team Scarab use.

Painting and fairing: It is true that a paint job is 90% prep and 10% application of paint. I spent a lot of time doing the prep and still could have spent another 4 full days. Even then I don’t think it would be perfect. If that is what you want then be prepared to prep until you think it is ok then prep another 3 times. Otherwise be happy and go sailing quicker, like me.
